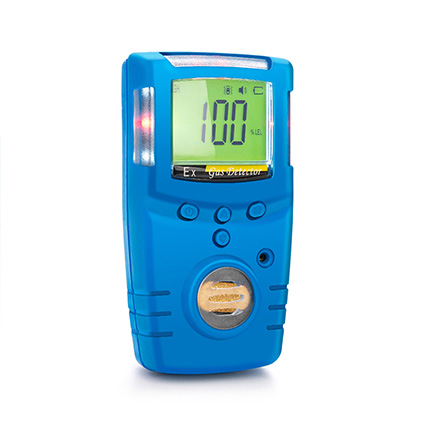

GC210 detector is a portable Gas Detector with intrinsic safety, which can continuously monitor gas leak density.
oem/odm
It is is widely used in metallurgy, electric factory, chemical, mines, tunnels, underground pipes etc, effectively prevent toxic accident.
GC210 detector is a portable Gas Detector with intrinsic safety, which can continuously monitor gas leak density.
1. Reliable and durable fixed life by the imported sensor, Automatical calibration and zero-set
2. Apparent and Clear Display
3. Rapid and effective warning with audible alarm, and extremely bright visual light alarm and vibrating alarm as standard.
4. Alarm for sensor failure
5. Password management to avoid wrong operation;
6. Advanced self- calibration for accuracy..
| Model | GC210 |
| Gas detection | Single GasTWA STEL |
| Gas sensor | Electro-chemical sensorcatalytic combustion Sensor |
| PID sensor | |
| Gas range | As per request |
| Alert value | As per request |
| Accuracy | ±3%F.S |
| Response time | T90<30s |
| Operating temperature | -30°C-50°C |
| Humidity | <95%RH no condensation |
| Display | Large STN LCD indicates real time and system state |
| Alarm | Audible and visualvibration M85dB the higher of buzz frequency the |
| higher gas concentration is. Can be customized with no alarm | |
| Charging time | 4-6h |
| Sampling method | Natural diffusion |
| Power supply | 3.7V DC 1200mAh rechargeable Li-ion battery |
| Fault indication | Indications of Zero point drift and sensor failure |
| Duration of operation | <300h(non-stopped) |
| Ingress Protection | IP65 |
| Explosion Proof | Ex ia IIC T4 Gb |
| Dimension | 102*56*26(mm) |
| Net weight | 120g(including battery) |
Oil and Gas drilling
Metallurgy
Mining industry
Power Plant
Steel plant
Gas pipeline project
