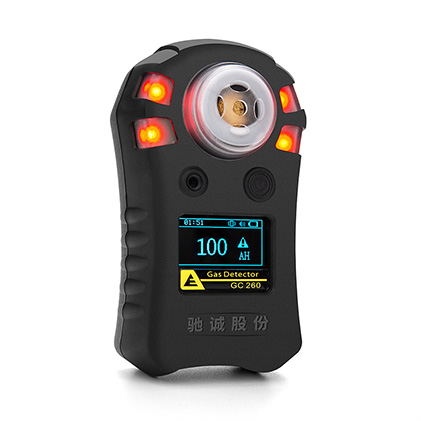

GC260 Portable gas detector

GC260 portable detector is a portable gas alarm with intrinsic safety (detector hereinafter ) , which can continuously monitor combustible gas, oxygen,toxic gas density.

oem/odm
GC260 Portable gas detector
GC260 Portable gas detector
GC260 Portable gas detector
GC260 Portable gas detector
GC260 Portable gas detector
Application:

The detector monitors combustible gas, oxygen,toxic gas density and is widely used in metallurgy, electric factory, chemical, mines, tunnels, confined space, underground pipes etc, effectively prevent toxic accident.

Description Technical Data Download Application Contact us Related Products

Description

GC260 portable detector is a portable gas alarm with intrinsic safety (detector hereinafter ) , which can continuously monitor combustible gas, oxygen,toxic gas density. It is applied for ozon gas leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, confined space to keep the workers safe from invasion of hydrogen damage to equipment.



Advantage

♦ IP67, EX ia IICT4 Gb for comosve higherhumidty, highertemperature application.

♦ Premium Gas Sensor;100% Calilratio for 10 √points and 100%QC.

♦ Gas Sensor Module for Free Maintenance.

♦ 1 year warranty &New replacement within 3 months.

♦ Imported microp-rocessor with low power consumption.

♦ Sensor Self-diagnosis.

Technical Data

Model  GC260
Gas Detection  Single Gas(Toxic gas combustible gas or oxygen)
Gas Range  As per request
Indication Accuracy  ±3%F.S.
Operating Temperature  -20°C~+60°C-
Working Time  >10h for combustible gas >500h for toxic gas
Ingress Protection  IP67
Explosion Proof  Ex ia IIC T4 Gb
             Display  OLED.1.92 inch
Alarm  Visual .audible .vibration
Power Supply  3.7V 2000mA rechargeable Li-ion battery
Charging Time  <4h
Calibration  Up to 10 points calibration. One-click automatic calibration and automatic zero multi-point calibration can be performed manually..
Sampling Method  Natural diffusion
Enclosure  Strong durable and shockproof.
Data logging  500 data. Alarm data Operation data and Fault data
Communication  USB bluetooth
Dimension  109mm(L)x64mm(W)x30mm(H)
Weight  200g(battery included)

Application

Oil-and-Gas-drilling

Oil and Gas drilling

Metallurgy

Metallurgy

Mining-industry

Mining industry

Power-Plant

Power Plant

Steel-plant

Steel plant

Gas-pipeline-project

Gas pipeline project
