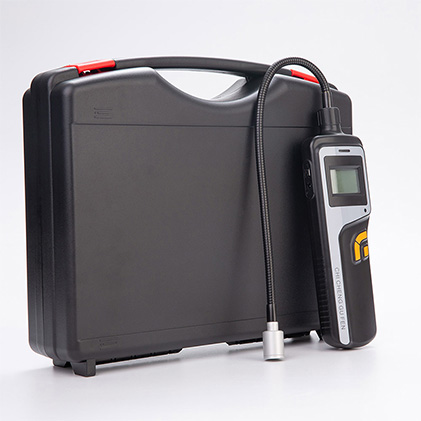

Portable gas detector GC510 is a kind of gas detector which detects toxic gas, combustible gas, oxygen gas, etc in the working application continuously.
oem/odm
1. STE and TWA monitoring;
2. Atmospheric monitoring;
3. Environmental cleanliness monitoring;
4. Landfill monitoring;
5. Petrochemical industry;
6. Metallurgy, mine;
7. Confined space;
8. Dangerous substances rapid response;
9. Industry paintleakage detection;
10. IAQ monitoring for indoor air quality.
Portable gas detector GC510 is a kind of gas detector which detects toxic gas, combustible gas, oxygen gas, etc in the working application continuously.
It is widely applicable to such application where is explosion-proof, toxic gas leakage emergency rescue, underground or mine, etc, so that can guarantee the workers’ life and safety to avoid any violation, the equipment are not affected by the loss.
GC510 can also be equipped with built-in air pump to extract air and test the air sample in the testing area, then transfer the air sample into the gas detector to test, which is with rapid detection speed. Long distance detection can be performed in the dangerous area to guarantee the worker’s safety.
♦ Small size, light weight and durable
♦ Adopt embedded 16-bit microprocessor, ensure that the product is in stable and reliable operation.
♦ Visual, audible, vibration alarm.
♦ Large display screen, easy operation. Self-test function.
♦ Save and restore the factory setting function.

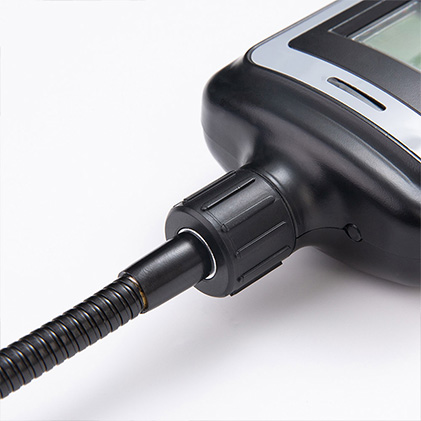

♦ External flexible probe(Optional) for combustible gas only.
| Model | GC510 |
| Gas detection | Combustible Gas |
| Sensor | Catalytic combustion type |
| Response time | T90<30s |
| Operating temperature- | -20°C-50°C |
| Humidity | 5-90%RH no condensation |
| Display | LCD |
| Alarm | Flicker three color LED warning lamp LCD display 90dB pulse output vibration |
| Power supply | 3.7V rechargeable Li-ion battery |
| Sampling method | Natural diffusion with flexible probe |
| Enclosure | Strong durable and shockproof. |
| Calibration | One-click automatic calibration and automatic zero multi-point calibration can be performed manually. |
| Data logging | 1000 |
| Dimension | 227*71*35mm |
| Weight | 220g |
Oil and Gas drilling
Metallurgy
Mining industry
Power Plant
Steel plant
Gas pipeline project
